Applications
Nano-MRI represents a groundbreaking leap in cancer imaging technology, offering unprecedented capabilities in detecting lymph node metastases as small as 1.5 millimeters - a feat unmatched by any other current technique. This radiation-free method is poised to transform cancer diagnosis and treatment planning.
Key advantages of nanoparticle-MRI include:
• Unparalleled precision in identifying tiny metastases
• Radiation-free imaging, unlike some other techniques
• Crucial for tailoring optimal, personalized treatments
• Avoids unnecessary interventions and their side effects
• Potential for significant healthcare cost savings
Recent meta-analyses demonstrate nano-MRI's impressive performance:
• 88% sensitivity and 93% accuracy for prostate cancer
• Similar high sensitivity (88%) and specificity (96%) for other cancer types
• Overall weighted area under the curve of 0.96
• Significantly outperforms conventional MRI without nano-contrast
By enabling earlier and more accurate detection of cancer spread, nano-MRI could revolutionize treatment strategies. For example, precise identification of lymph node metastases could allow for targeted image-guided radiation therapy, potentially improving outcomes while reducing side effects.
Nano-MRI provides both structural (anatomical) and functional, cell-specific molecular information, making it highly sensitive and specific for detecting lymph node metastases across various tumor types. This dual capability offers superior diagnostic precision compared to conventional MRI without nano-iron contrast agents.
As this technology continues to develop, nano-MRI has the potential to become one of the most important advancements in cancer detection, opening new avenues for more targeted and effective treatments.
"Without nano-MRI, my doctor wouldn't have been able to determine how long the treatment should be continued."
"Thanks to the nano-MRI scan, after 13 years, I have an excellent chance of a definitive cure."
"If it weren't for nano-MRI and its ability to locate nodes for radiation, I would probably have already started chemotherapy by now."
"A medical revolution."
"A brilliant addition to our arsenal with which we fight the curse of cancer."
Nano-MRI uses a novel and unique MRI contrast agent that makes inflammatory cells (macrophages) in active Multiple Sclerosis visible.
The nano-MRI contrast agent consists of tiny spheres with a diameter of 20-50 nanometers. These spheres have an iron core and are coated with a sugar called "dextran". Due to their small size, they are taken up by macrophages, which are 'all-eaters' and active in inflammations (neuro-dgeneration). In the case of multiple sclerosis, these macrophages clean up the damaged remnants of nerve cells, particularly in the early stages of active disease.
With traditional MRI contrast agents (using Gadolinium (Gd)), the enhancement is due to increased permeability of blood vessels, which occurs late and is also observed in inactive scar tissue (Figures on the right). By using nano-iron, macrophages become visible on MRI images. This allows us to detect inflammation and activity in multiple sclerosis early on, and selectively (Figures on the left).
Thanks to nano-MRI's ability to identify active foci of multiple sclerosis at an early stage, targeted and early treatment can take place with expensive and limitedly available medications.
1. Nano-MRI provides additional information compared to traditional Gd-contrast MRI, likely related to cell infiltration (inflammation). Nano-MRI makes this cell infiltration visible.
2. In the early stages of MS, cell infiltration is associated with persistent local damage to nerve cells, a phenomenon visible with nano-MRI.
3. The nano-particle contrast primarily reveals cell-specific inflammations that cause permanent damage.
4. In MS patients, nano-MRI helps detect more active MS lesions, which often have a more aggressive course.
Literature:
Based on the information provided, here are the key points about using nano-MRI to detect inflammation in abdominal aortic aneurysms (AAAs) and atherosclerotic plaques:
1. Nano-MRI can detect inflammatory hotspots in the walls of AAAs.
2. Local accumulation of nano-contrast in the aneurysm wall indicates rapid expansion of the aneurysm (Richards et al.).
3. This technique allows early detection of high-risk aneurysms that may rupture soon.
4. It can help screen for expanding aneurysms and identify patients at high risk of rupture.
5. Early detection of aneurysms about to rupture can prevent patient death.
6. It may serve as a signal to investigate new treatments for AAAs.
1. Nano-MRI can predict when atherosclerotic plaques are likely to rupture.
2. Local accumulation of macrophages under a plaque indicates high risk of rupture.
3. This allows preventive treatment with anticoagulants to prevent heart attacks or strokes.
4. Nano-MRI can be used as an imaging biomarker to assess the effectiveness of anti-inflammatory treatments in patients with vulnerable plaques.
In both cases, nano-MRI provides valuable information about inflammatory activity that can guide clinical decision-making and potentially prevent life-threatening events like aneurysm rupture or plaque rupture leading to heart attack or stroke [Tang et al]. The ability to detect inflammation non-invasively makes it a powerful tool for risk assessment and treatment monitoring in vascular diseases.

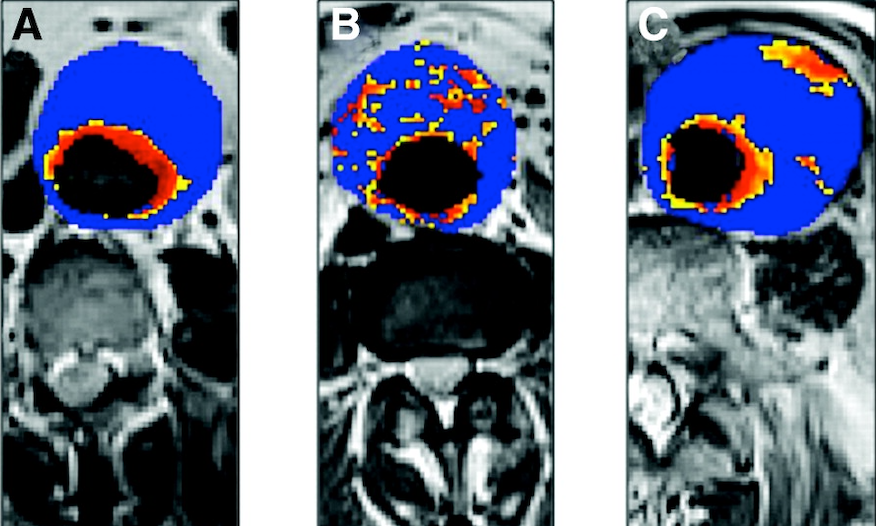

- Black represents the patent lumen (open channel)
- Blue represents the thrombus (blood clot) in the vessel
- Red-yellow represents the nano-contrast
A. Nano-contrast only around the patent lumen -> low risk of growth
B. Scattered patchy contrast throughout the thrombus, but no distinct localized area -> also low risk of growth
C. In addition to uptake around the patent lumen, there is a localized area of nano-contrast in the vessel wall at the 1-2 o'clock position. This patient later died suddenly from a ruptured aneurysm -> rapid growth.
This imaging technique using nano-contrast agents provides valuable information about abdominal aortic aneurysm (AAA) inflammation and potential instability. The localized areas of contrast uptake likely represent regions of increased vascular inflammation, which are associated with higher risk of aneurysm expansion and rupture. Pattern C, showing a distinct localized area of inflammation, appears to be the most concerning and indicative of rapid aneurysm growth and potential rupture risk.
Nano-MRI can excellently image the contents of blood vessels, and because it contains iron, it can be used even in patients with severe kidney function problems. This is impossible with conventional MRI and X-ray contrast agents. Nano-MRI can visualize tiny vessels exceptionally well. Below are two videos showing blood vessels of the entire body muing nano-MRI.
Image of blood vessels in a transplant-kidney of a patient with sudden kidney function decline. The artery (*) and vein (#) of the transplant-kidney are attached to pelvic vessels and are patent. Nano-MRI reveals that poor kidney function is not due to a vascular issue, but indicates rejection. The patient was successfully treated with anti-rejection medications(from:P.Zamecnik).
